Ease

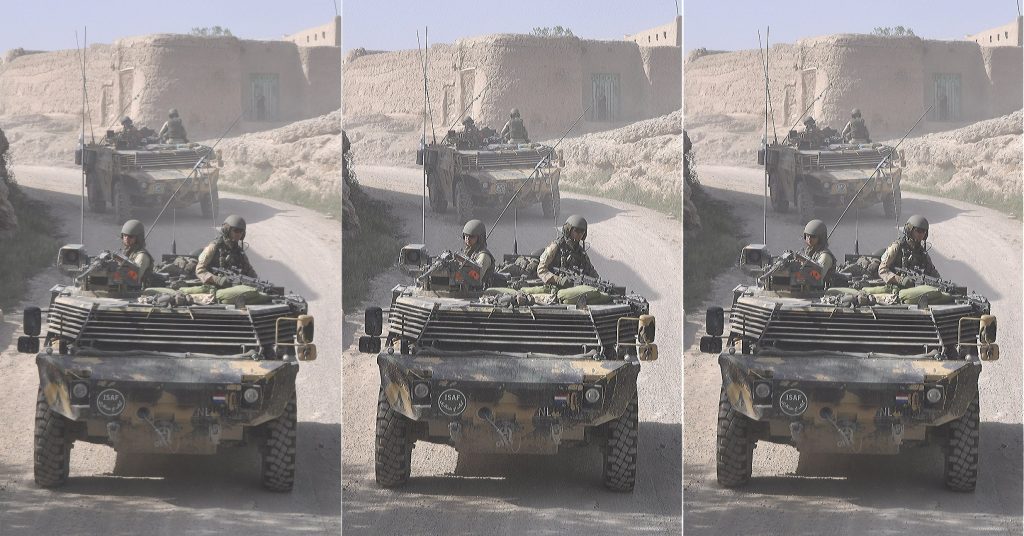

The EASE™ IP-core was developed in order to apply sharpening on video material in a conventional manner as well as reducing the effects of boosting noise in homogenous (non-edge) areas. The EASE™ IP core can apply the edge enhancement in an FPGA in real-time with virtually no time-lag.

By feeding an image or video stream containing low intensity noise (like power supply crosstalk or EMI) that is existing in the bottom bits of the digital video data, to a conventional sharpening operator the noise will become more existing in homogenous areas of the image or video stream. This is because usually not only edges are boosted, but also non-edges.

ITS has developed EASE™ that on-the-fly determines the amount of sharpening allowed for every single video pixel. Areas with zero detail will not be subject to edge enhancement, but the more detail, the more sharpening will be applied.

The time lag will be utmost a couple of video lines, depending of the size of the filter kernel used.

In this way, real time sharpening for fast moving objects will be improved dramatically and therefore details for Detecion, Recognition and Identification will improve as well as ease of viewing for the operators. EASE™ can be integrated in ITS cameras but is also available as IP cores, alone or in combination with other ITS IP cores.
